Impressed Current Anode

MMO Anode

MIXED METAL OXIDE ANODE



GENERAL






Anodes feature an electro-conductive coating of mixed metal oxides, forming a solid solution with the titanium substrate and exhibiting electrical properties, which allow the composite to function as an anode. The characteristics of the mixed metal oxide coating are:



-          Excellent electronic conductor with resistivity of 10 - 5 ohm.cm.

-          Deposited on substrate by thermal decomposition and therefore anhydrous and insoluble in    acids and chloride ion.

-          Thermal treatment favors crystallization, which enhances the chemical stability.

-          Low and uniform wear rates.



ADVANTAGES



High current output- just as with any other anode, current density affects the service life of anodes. The maximum anode current density normally recommended for design of anodes varies with the environment as per the definitions in specifications.



Soil (with Carbonaceous Backfill) 100A/m2

Seawater 600A/m2

Fresh and Brackish Water 100A/m2

Mud 100A/m2



In conventional groundbeds, the typical savings are 20-25% versus silicon-iron or graphite anode systems on an installed cost basis. Savings are even greater for deep groundbeds. Rod anode assemblies are normally more cost effective than comparable platinum rod systems. Wire anodes are quite competitive on an installed cost basis versus platinized wire.



LONG SERVICE LIFE



Essentially negligible consumption (from0;5 to 5mg/Amp year) has been observed on the mixed metal oxide coating at the recommended current densities, resulting in extended service life. Anode system in sea water are designed for a life of 15 years, and Anode systems in other environments are engineered for a 20 years life. The eletrocatalytic coating shows excellent stability even in very acidic environments.



ANODE TYPES



Solid Rod Anode






Perform well in all types of environments.

Used in deep and conventional groundbeds in fresh, brackish, and salt water electrolytes.



Tubular String Anode






Operate effectively in all types of environments, including areas with extermly low pH levels

(under 1).

Can be used in multiple quantities in string assembly or used singularly. Their unique configuration makes them ideal for use in strings on offshore platforms or in deep groundbeds.

Can be installed parallel to transmission pipelines, or used for other special application.



DESIGNATION

DIAMETER (cm)

LENGTH (cm)

CURRENT OUTPUT (Amp)

Soil







S.T. 2.5/50

2.5

50

4.00

S.T. 2.5/100

2.5

100

8.00

S.T. 1.6/50

1.6

50

2.50

S.T. 1.6/100

1.6

100

5.00

Fresh - Brackish Water







FW.T. 2.5/50

2.5

50

4.00

FW.T. 2.5/100

2.5

100

8.00

FW.T. 1.6/50

1.6

50

2.50

FW.T. 1.6/100

1.6

100

5.00

Sea Water







SW.T. 2.5/50

2.5

50

25.00

SW.T. 2.5/100

2.5

100

50.00

SW.T. 1.6/50

1.6

50

15.00

SW.T. 1.6/100

1.6

100

30.00

Mud







M.T. 2.5/50

2.5

50

4.00

M.T. 2.5/100

2.5

100

8.00

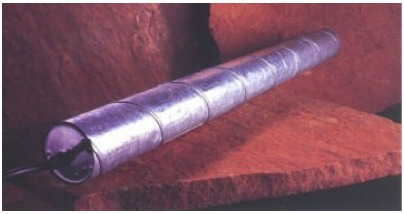

Canistered Wire Anode






Canistered wire anodes are the perfect impressed current anode for shallow vertical and horizontal surface groundbeds, as well as wet, marshy soil conditions where caving is likely to occur. Ideal for protecting structures such as:



-          Underground Storage Tanks

-          Above Ground Storage Tanks

-          Pipelines

WIRE TYPE

SUBSTRATE

DIAMETER (mm)

CURRENT OUTPUT IN FW OR SOIL (Amp)

FW/ SW Ti 1.5

Solid Titanium

1.5

0.5

FW/ SW Ti 3.0

Solid Titanium

3.0

1.0

FW/ SW CC 1.5

Copper Cored Ti

1.5

0.5

FW/ SW CC 3.0

Copper Core Ti

3.0

1.0









Ribbon Anode

For use on both newly constructed above ground storage tanks with secondary containment liners, and existing tanks utilizing double bottom construction.

Not require coke breeze.

Can be used in sands with various levels of moisture and salt contents.



Wire Anode



Can be used in both aqueous and soil electrolyte.

Delivers superior protection in fresh, brackish, or salt water, and have been found to be resistant to acids and chloride ions.

Can operate in temperature of up to 175 degree celsius.

Should not be used in electrolyte containing barium or cadmium



Diameter : 3mm

Current Output : 60mA/m



ORDERING INFORMATION



Shapes and sizes of anodes can be specified upon order to meet customer's requirement.



Specify the following details upon ordering:



1.      Anode Type

2.      Anode Dimension/ Length

3.      Anode Quantity (Individual Anodes; String Anodes per Set)

4.      Cable Tail Size, Length, Insulation Type
